Detecting Electrical Faults Before They Lead to Unplanned Downtime

In electrically dense warehouse environments, electrical faults often develop silently until heat, arcing, or a breaker trip force urgent intervention.

Speak with an expert
the importance

Why This Failure Mode Gets Expensive Fast

Electrical faults rarely show up as a single clean failure. They usually escalate through heat, resistance, and repeated trips before the real issue is identified.

In many cases, the issue starts at a single point such as a loose lug, rising resistance at a terminal, or uneven loading across phases. Once heat buildup accelerates or arcing begins, the window to intervene closes quickly.

Teams can be caught in a reactive state, and are often left responding to:

  • ico-21 Unexpected equipment shutdowns or line stoppages
  • ico-22 Nuisance trips that obscure the underlying electrical issue
  • ico-23 Overheated conductors, terminals, or components
  • ico-24 Emergency troubleshooting under energized conditions
  • ico-25 Increased safety exposure and liability during energized inspection or repair
early warnings

Failure Reality

Electrical faults rarely appear all at once. They develop progressively as resistance increases, connections loosen, insulation degrades, or loads drift out of balance.

When panels, MCCs, busbars, or distribution equipment begin to experience issues, teams often notice:

  • Intermittent trips or unexplained shutdowns
  • Minor voltage or current irregularities
  • Localized overheating without visible damage
  • One panel or circuit behaving differently than others under the same load

By the time a fault triggers a trip or failure, electrical stress has often been present for weeks or months. Internally, teams describe this as:

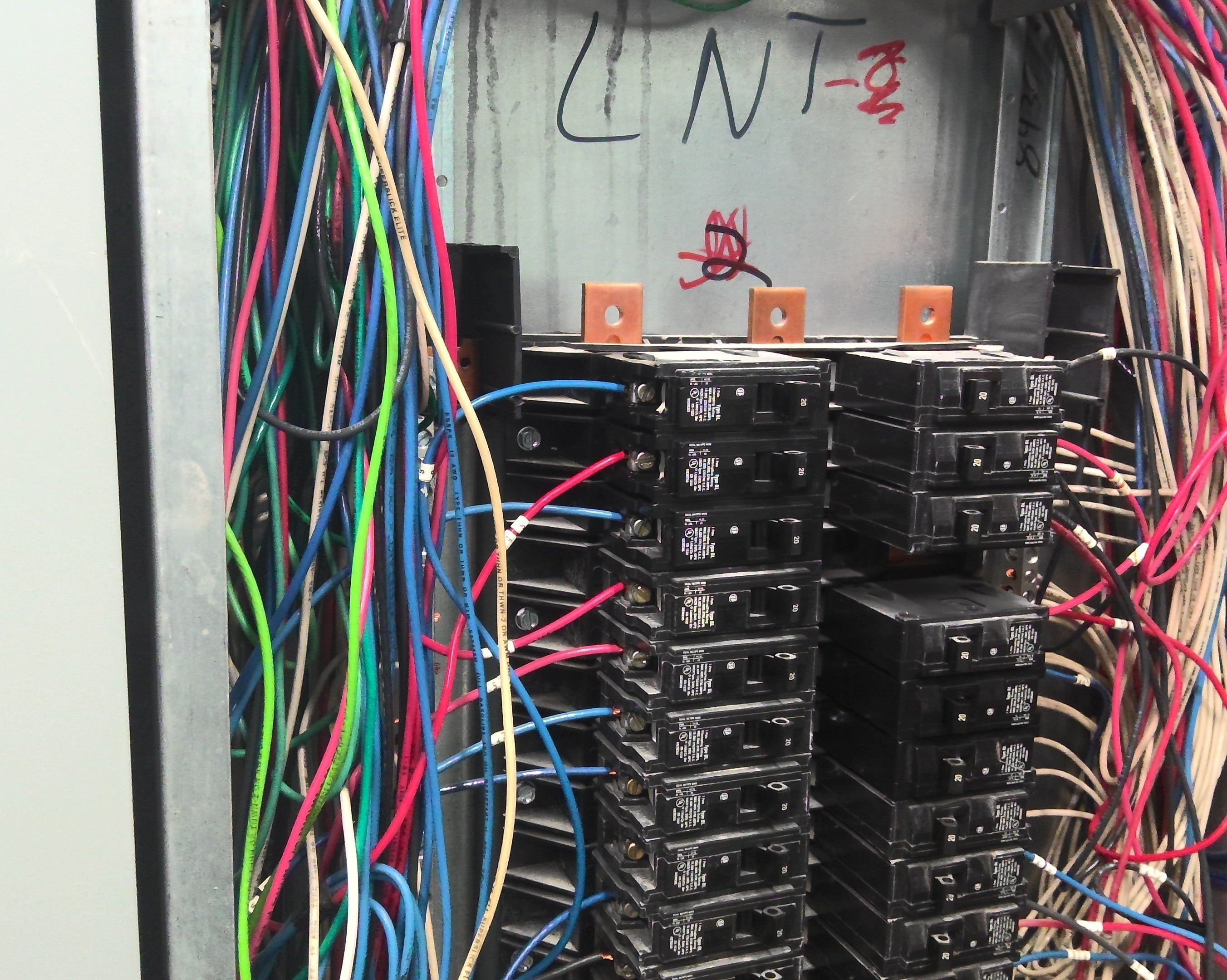

0010_VIS
  • “It just started tripping.”
  • “The breaker looks fine.”
  • “There’s no clear fault.”
  • “It resets, then happens again.”
OUR SOLUTION

Where MultisensorAI Helps

Traditional detection responds after ignition - when damage and downtime have already begun. Manual checks miss early heat or electrical faults, leaving warehouses, data centers, and test facilities exposed to failures that can cost millions and compromise safety.

Electrical faults inside panels, MCCs, VFD cabinets, and switchgear rarely start as visible failures. They begin as localized heat, rising resistance, or load imbalance — often weeks before a breaker trip or shutdown.

MSAI Connect provides continuous, non-intrusive thermal monitoring of electrical panels and drive cabinets, helping teams detect abnormal heating before it escalates into unplanned downtime.

Using fixed thermal monitoring points integrated through the MSAI Hub, MSAI Connect:

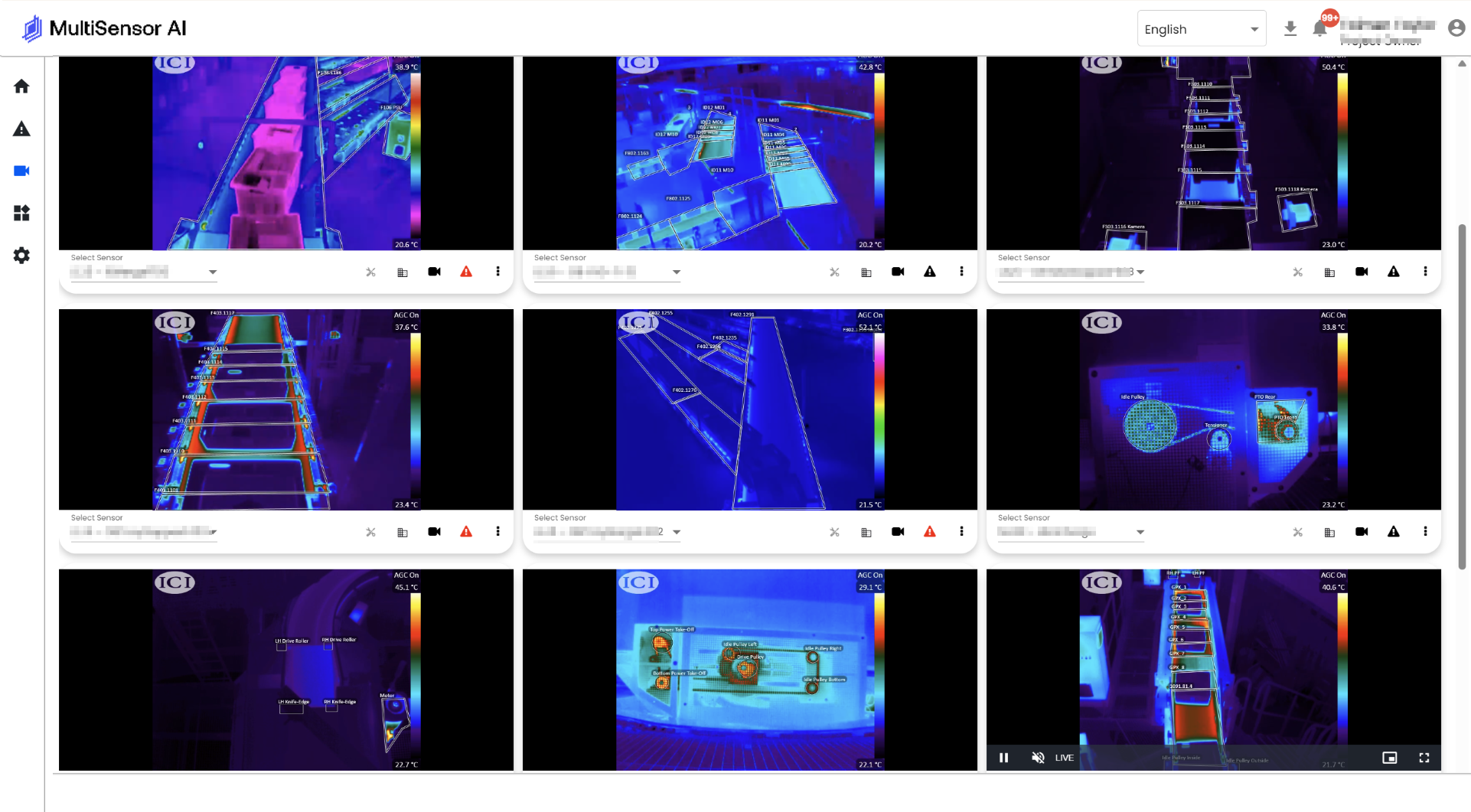

MSAI Connect thermal dash 4

Internally, teams describe this as:

  • Detects abnormal heat at lugs, breakers, busbars, and drive components
  • Surfaces gradual temperature drift that protection devices don’t show
  • Provides historical trending to understand whether conditions are stable or worsening
how it works

How Early Threat Detection Works

Before an electrical fault escalates, subtle but measurable changes occur. These changes often appear well before protection systems are triggered by a breaker trip or visible damage.

Single-point alarms are designed to protect equipment, not to surface gradual electrical degradation. Early detection depends on knowing where heat and electrical stress are developing, how fast conditions are changing, and how similar panels or circuits behave under the same operating load.

Common early indicators include:

  • ico-27 Localized temperature increases at terminals or conductors
  • ico-28 Uneven heat distribution across similar circuits
  • ico-29 Gradual rise in resistance-related heating
  • ico-30 Electrical stress driven by load imbalance or environmental factors

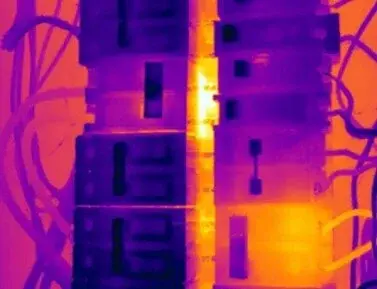

Hero Image_Residential Qualitative Electrical Thermology

<p>Talk to an engineer</p>

Maintenance Equipment Optimization

Extending Electrical Component Life
Without Over-Maintaining

Electrical components do not degrade uniformly or on predictable schedules. Without early condition insight, maintenance teams are often forced into conservative or blanket servicing approaches that don’t reflect actual risk.

Common challenges include:

  • Components replaced early due to uncertain fault severity
  • Uniform inspection intervals applied across uneven load profiles
  • Preventive work performed without clarity on which connections or circuits are degrading

This is especially common in:

  • Electrical panels feeding high-duty equipment
  • MCCs operating under fluctuating loads
  • Distribution equipment exposed to heat, dust or vibration
img-98
Labour Effectiveness

Reducing Reactive Work Caused by Electrical Faults

When electrical faults are detected late, maintenance work becomes reactive by necessity.

Teams frequently experience:

  • ico Emergency call-outs following unexplained trips or shutdowns
  • ico Repeated investigation of intermittent or unclear electrical issues
  • ico Skilled labour diverted from planned work to urgent fault response

This reactive cycle consumes maintenance capacity without addressing the root causes of degradation.

Reducing reactive work depends on identifying developing electrical faults early, allowing teams to plan interventions, coordinate access, and apply expertise where it prevents escalation instead of responding after failure.

<p>Read more</p>

img-89
Health & Safety

Managing Heat and Electrical Stress
Before They Create Exposure

Heat is one of the earliest and most reliable indicators of electrical fault development. As connections loosen, resistance increases, or loads become unbalanced, localized temperature rises often appear long before alarms or failures occur.

Managing heat and electrical stress early helps teams reduce the likelihood of hazardous fault scenarios, shifting electrical maintenance from urgent, high-risk response to controlled, lower-exposure work. Catching heat and electrical stress early reduces the chance of arc faults, damaged conductors, and rushed work inside energized panels.

If left unaddressed, these conditions can lead to:

  • ico-34 Insulation breakdown or conductor damage
  • ico-35 Arc fault risk or component failure
  • ico-36 Increased exposure during energized inspections or emergency repairs
<p>Download the case study</p>

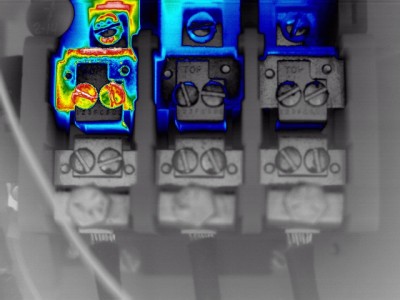

Isothermic-Electrical-Image-with-ICI-IR-640-Pad-P-Series-3
Asset & Environment Examples

Seeing This Gap In Your Operations?

Why are electrical faults hard to detect early? Because most protection and monitoring is designed to react after a fault occurs, not to show gradual changes that lead up to it.

Electrical equipment often appears normal right up until a trip, a shutdown, or visible damage forces investigation.

Common detection gaps include:

  • Protection devices that trip only at defined thresholds
  • Limited visibility inside energized panels and cabinets
  • Periodic inspections that miss intermittent or developing issues
  • Reliance on human observation for heat, odor, or sound
Why This Failure Is Commonly Missed

What Happens If You Miss It

If early warning signs go unnoticed, teams are left reacting to electrical failures instead of preventing escalation.

Common outcomes include:

  • ico-37 Sudden equipment shutdowns and line stoppages
  • ico-38 Nuisance trips that repeat without a clear root cause
  • ico-39 Overheated terminals, conductors, or components that progress into damage
  • ico-40 Emergency troubleshooting under production pressure
  • ico-41 Increased safety exposure during energized inspection or repair

In many cases, the issue starts as a localized condition such as rising resistance, a loose connection, or uneven loading. Once heat buildup accelerates, the margin to respond safely and deliberately disappears. Missing early indicators turns electrical maintenance into reactive response, increasing downtime risk, labour disruption, and operational exposure.

Download Fact Sheet

faq

Frequently Asked Questions

What causes electrical faults?

Electrical faults are commonly caused by loose or degraded connections, rising resistance, insulation breakdown, load imbalance, environmental exposure, and sustained electrical stress.

How early can electrical faults be detected?

Early indicators often appear weeks or months before a fault triggers a trip or failure, depending on operating conditions and load profiles.

Why don’t breakers or protection systems catch this earlier?

They are designed to protect equipment by responding to fault conditions, not to detect gradual degradation developing over time.

Is temperature an early indicator of electrical faults?

Yes. Localized heat buildup is often one of the earliest signs of increasing resistance or electrical stress.

Are visual inspections enough to catch electrical issues early?

Not consistently. Many early indicators develop inside energized equipment where visual inspection is limited or unsafe.
